Name: Xy lanh khí nén MCJA hãng Mindmand - Industrial Hardware
Availability: InStock

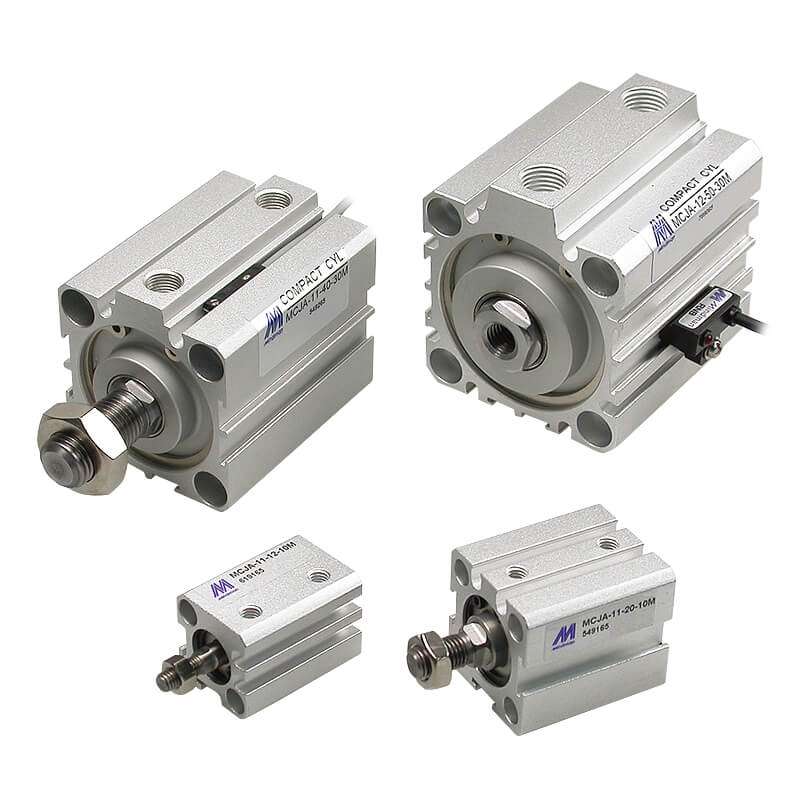

Xy lanh khí nén MCJA hãng Mindmand

Liên hệ

Giao hàng COD toàn quốc

φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available Ultra Compact, light weight and space saving cylinder.

MCJA

Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available

Ultra Compact, light weight and space saving cylinder.
Wide range of bore sizes and strokes (12mm~100mm).
Single and double acting available.
Ideal for use in machinery where space is limited and incorporating sensor groove which enables flush fitting of sensors.

Acting type	Double acting / Single acting
Tube I.D. (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size	M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium	Air
Operating pressure range	Double acting:0.02~1 MPa, Single acting:0.1~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCB, RCE, RCE1, RDEP

proimages/prod_orderno/E_MCJA.gif

Xy lanh khí nén MCJA hãng Mindmand

MCJA
