Model

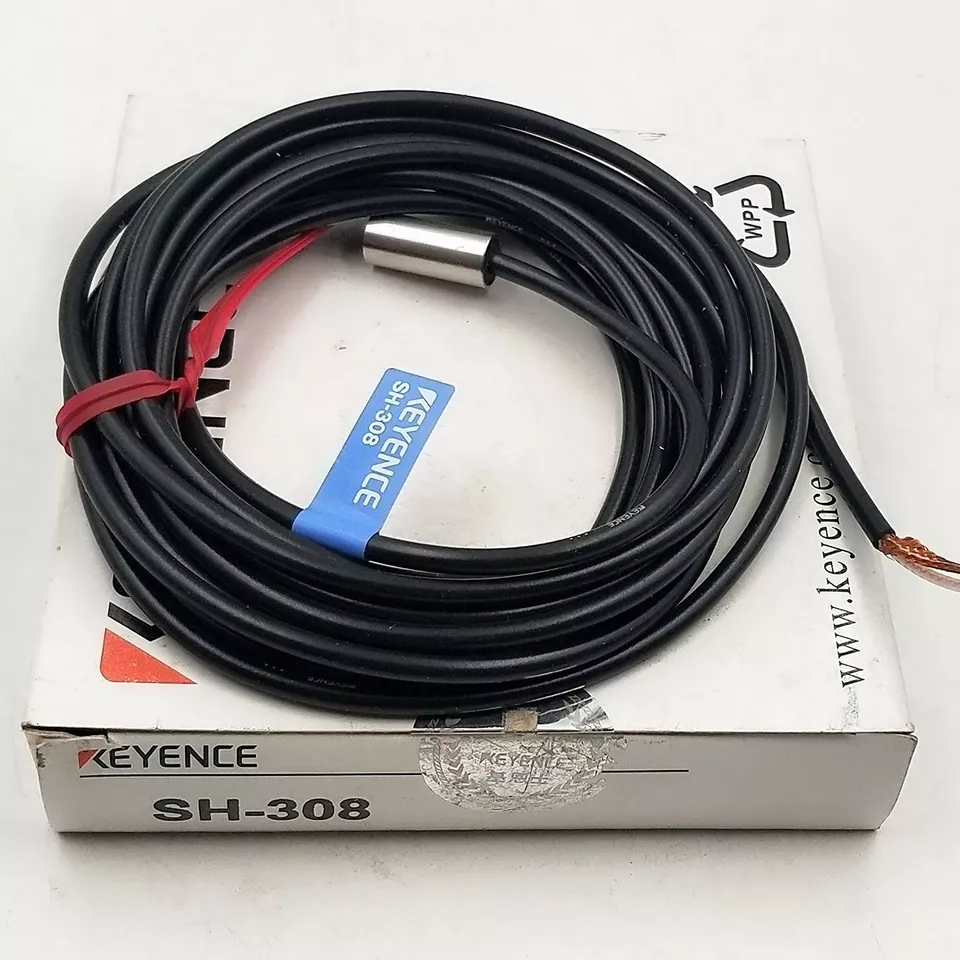

SH-308

Type

Standard Shielded Cylindrical

Shape

ø8×18 Cylindrical

Detectable object

Ferrous metal (see Characteristics for nonferrous metals)

Standard target (iron, t=1 mm 0.04″)

10 x 10 mm 0.39″ x 0.39″^*1

Stable detecting range

0 to 2 mm 0.08″

Maximum detecting distance

5 mm 0.20″

Repeatability

0.002 mm 0.00008″^*1

Hysteresis

0.01 mm 0.0004″^*1

Temperature characteristics

0.08%/°C^*1

Environmental resistance

Enclosure rating

IP67

Ambient temperature

-10 to +60 °C 14 to 140 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions

Weight

Approx. 55 g
