Model

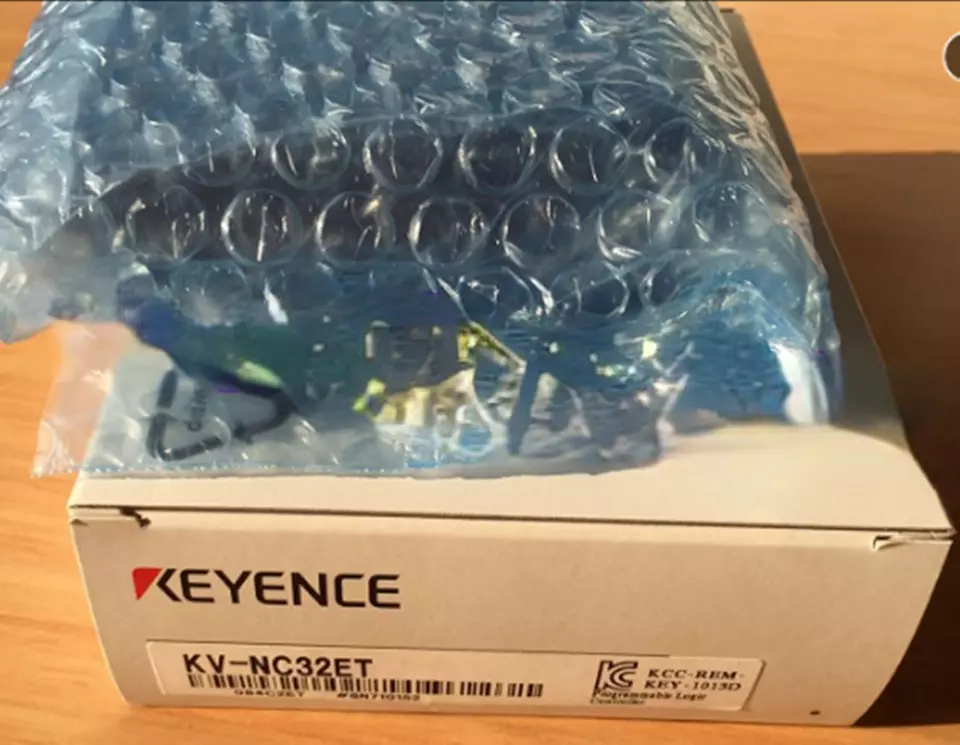

KV-NC32ET

Expansion output unit

External connectionmethod

MOSFET (With overcurrent protection function)^*1*2

External connection method

Connector

Rated load

30 VDC. 0.2 A ^*3

Leakage current (when output is OFF)

100 μA or less

Residual voltage (at ON)

0.6 VDC or less

ON resistance

−

Common method

32 points/1 common (2 terminals)^*4*5

Response time

OFF to ON

100 μs or less (with a load of 1 mA or more)

ON to OFF

200 μs or less (with a load of 1 mA or more)

Relay life

−

Relay replacement

Internal current consumption

50 mA or less

Weight

Approx. 110 g
