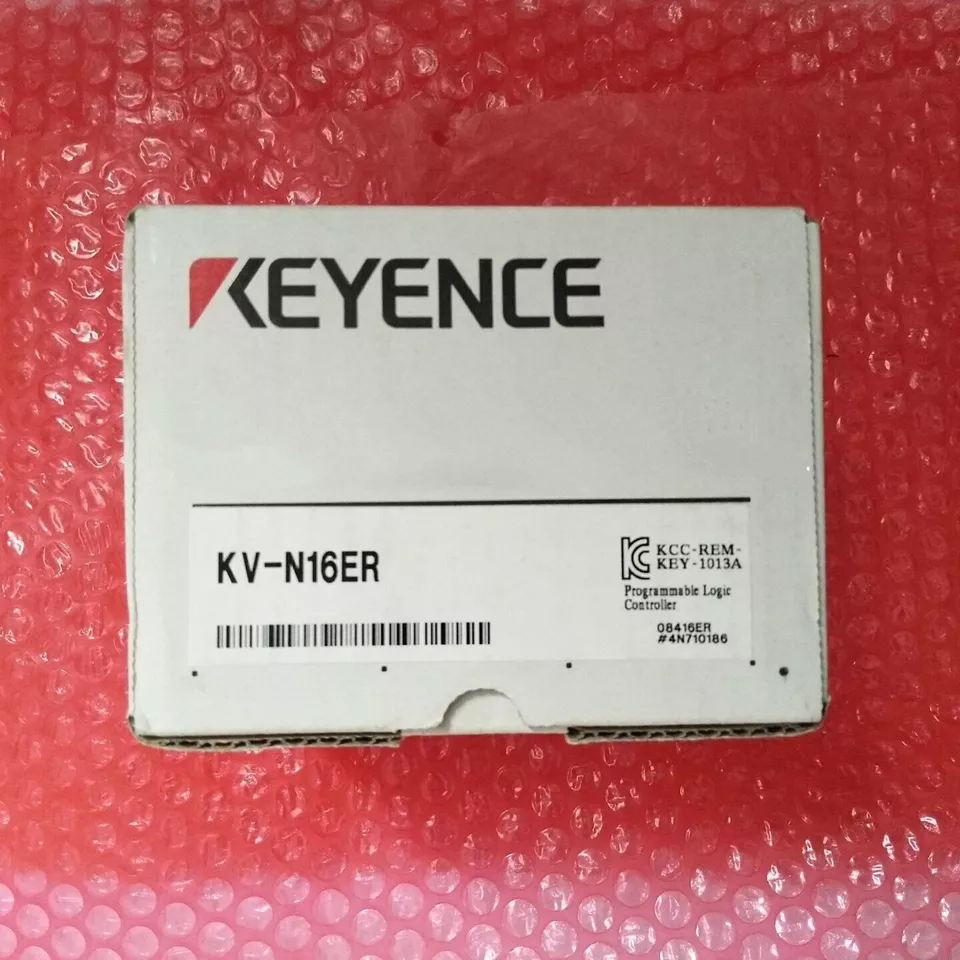

Model

KV-N16ER

Expansion output unit

Output Points

16 points

External connectionmethod

Relay

External connection method

Terminal block

Rated load

250 VAC/30 VDC, 2 A

Leakage current (when output is OFF)

−

Residual voltage (at ON)

ON resistance

50 mΩ or less

Common method

4 points/1 common
(8 terminals) ^*1

Response time

OFF to ON

10 ms or less

ON to OFF

Relay life

Electrical: 100000 cycles or more (20 cycles/minute)
Mechanical: 20000000 cycles or more

Relay replacement

Impossible

Internal current consumption

100 mA or less

Weight

Approx. 260 g
