KM-N3-FLK Đồng hồ đo các thông số điện năng Omron
Dễ dàng lắp đặt và phù hợp với moi loai cấu hình hệ thống

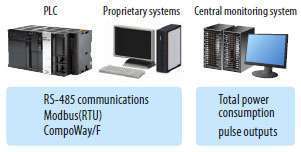

Giao tiếp đa dạng với máy chủ
Truyền thông đa điểm
Công nghệ đấu dây Push-in
Cảnh bảo đấu dây sai
Thông số kĩ thuật
Ratings (Power Monitor)
| Model | KM-N3-FLK | |
|---|---|---|
| Applicable phase wiring methods | Single-phase two-wire, single-phase three-wire, three-phase three-wire, and three-phase four-wire | |
| Number of measured circuits | Single-phase two-wire: 4 circuits max., Single-phase three-wire or three- phase three-wire: 2 circuits max., Three-phase four-wire: 1 circuit | |
| Power supply voltage (operating frequency) | 100 to 240 VAC (50/60 Hz) | |
| Power supply allowable voltage range | 85% to 110% of rated power supply voltage | |
| Power consumption | 7 VA max. | |
| Input | Rated input voltages | Single-phase, 2-wire:100 to 277 VAC Single-phase, 3-wire:100 to 240 VAC (L-N) or 200 to 480 VAC (L-L) Three-phase, 3-wire: 173 to 480 VAC (L-L) Three-phase, 4-wire: 100 to 277 VAC (L-N) or 173 to 480 VAC (L-L) |
| Allowable supply voltage range | 85% to 115% of rated power supply voltage | |
| Connectable CTs | General-purpose CT with a rated secondary current of 1A or 5A * | |
| Maximum CT secondary current | 6A | |
| Rated input frequency | 50/60 Hz | |
| Ambient operating temperature | -25 to 55°C (with no condensation or icing) | |
| Ambient operating humidity | 25% to 85% | |
| Storage temperature | -25 to 85°C (with no condensation or icing) | |
| Storage humidity | 25% to 85% | |
| Operating altitude | 2,000 m max. | |
| Installation environment | Overvoltage category II, measurement category II, pollution degree 2 | |
| Electromagnetic environment | Industrial electromagnetic environment (EN/IEC 61326-1 Table 2) | |
| Compliant standards | EN 61010-2-030, EN 61326-1, and UL 61010-1 | |
Performance (Power Monitor)
| Model | KM-N3-FLK | |
|---|---|---|
| Measured items | Total power consumption (active, regenerative, and reactive), power (active and reactive), current, voltage, power factor, and frequency | |
| Meas- urement specifi- cations | Active power | 0.5% (IEC 62053-22 class 0.5S * |
| Reactive power | 2% (IEC 62053-23 class 2) * | |
| Sampling cycle | 80 ms for 50 Hz and 66.7 ms for 60 Hz | |
| Insulation resistance | (1) Between all electrical circuits and the case: 20 MΩ min. (at 500 VDC) (2) Between all power supply and voltage inputs and all communications and pulse output terminals: 20 MΩ max. (at 500 VDC) | |
| Dielectric strength | (1) Between all electrical circuits and the case: 1,400 VAC for 1 min (2) Between all voltage and current inputs and all communications and pulse output terminals: 2,200 VAC for 1 min | |
| Vibration resistance | Single amplitude: 0.1mm, Acceleration: 15m/s2, Frequency: 10 to 150 Hz, 10 sweeps for 8 min each along three axes | |
| Shock resistance | 150m/s2, 3 times each in 6 directions (up/down, left/right, forward/ backward) | |
| Indications and operation method | LCD indications and operation buttons | |
| Weight | Approx. 350g (Power Monitor only) | |
| Degree of protection | Front: IP65, Rear case: IP20, Terminal: IP00 | |
| Pulse output | Number of outputs | Number of outputs: 4 (photoMOS relay outputs) Used for the total power consumption pulse output. |
| Output capacity | 50 mA at 40 VDC ON residual voltage: 1.5 V max. (for output current of 50 mA) OFF leakage current: 0.1 mA max. | |
| Output unit | Output unit: 1, 10, 100, 1k, 5k, 10k, 50k, or 100k (wh) Pulse ON time: 500 ms (Cannot be changed.) | |
| Commu- nications interface | Communications method | RS-485 (2-wire half-duplex with start-stop synchronization) |
| Communications protocol | Modbus (RTU): Binary. CompoWay/F: ASCII | |
| Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, or 38.4 kbps | |
| Data length | Data length: 7 or 8 bits Stop bits: 1 or 2 bits Vertical parity: Even, odd, or none | |
| Maximum transmission distance | 1,200m | |
| Maximum number of connected Power Monitors | Modbus: 99, CompoWay/F: 31 If you measure more than one circuit with one Power Monitor, the number of circuits is treated as the number of connected Power Monitors. | |
| Dimensions (H×W×D) | 96×96×64 mm (excluding protrusions) | |
| Installation method | On-panel installation | |
| Accessories | Instruction Manual and Compliance Sheet, Mounting adapter and waterproof packing | |
