Model

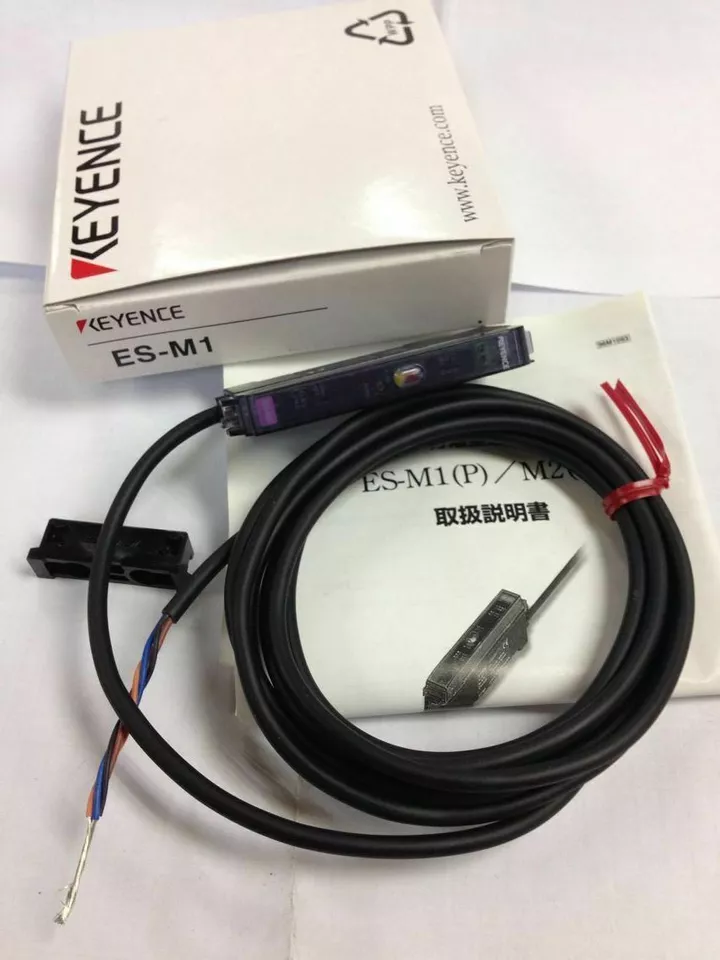

ES-M1^*1

Type

One-line expansion system

Shape

Main unit

Operation mode

N.O./N.C. switch-selectable

Timer function

10-ms delay / timer OFF switchable^*2

Output

NPN

Output

Control output

NPN open collector 100 mA max. 40 V, residual voltage 1 V max.

Disconnection alarm output

NPN open collector 100 mA max.
40 V,
residual voltage 1 V or less^*3

Response time

1 ms max.

Temperature characteristics

Within ±8% of detecting distance at +23°C 73.4°F when within 0 to 50°C 32 to 122°F temperature range

Sensitivity adjustment

25-turn trimmer

Protection circuit

Reverse power connection protection, output overcurrent protection, output surge protection

Rating

Power voltage

12 to 24 VDC, Ripple (P-P) 10 % or less

Current/power consumption

25 mA max.

Environmental resistance

Ambient temperature

0 to +50 °C 32 to 122 °F^*4

Relative humidity

35 to 85 % RH (No condensation)

Weight

Approx. 65 g (including nuts and 2-m 9.8′ cable)
