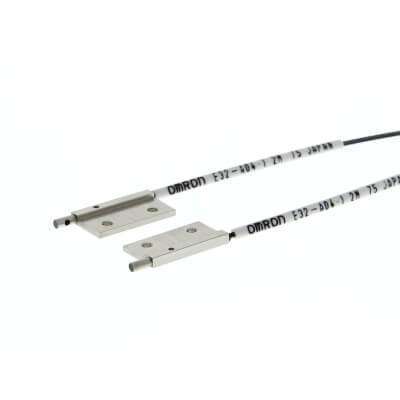

E32-A04-1 2M
Fiber optic sensor, through-beam, square, high-flex fiber R1, 2m cable
Square shape fiber sensor heads
The fiber heads in square shaped housing provide fast and easy installation on flat surfaces.
- Models with sensing direction in X, Y or Z axis
- 3 or 4mm thick housings for minimal height requirement
- Standard or high-flex fibers
Simple mounting
Space saving and fast mounting without additional brackets
High production accuracy
Precise positioning during manufacturing for 90° optics to achieve minimal tolerance variations in optical output axis angle.
Specifications
| Sensing method | Through-beam |
| Shape | Square |
| Width | 9 mm |
| Depth | 2 mm |
| Height | 21 mm |
| Features | Flexible fiber |
| Temperature range | -40-70 °C |
| Sensing distance | 1000 mm |
| Cable length | 2 m |
