Name: Công tắc áp suất khí nén MP41 hãng Mindman - Industrial Hardware
Availability: InStock

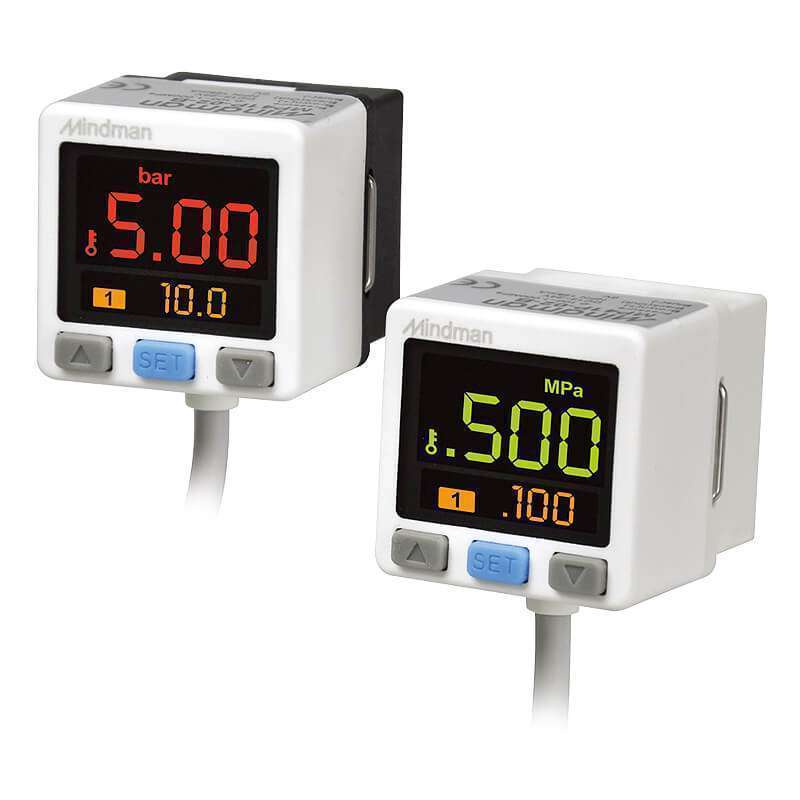

Công tắc áp suất khí nén MP41 hãng Mindman

Liên hệ

Giao hàng COD toàn quốc

MP41 Hysteresis adjustable. High accuracy and Resolution.

Hysteresis adjustable. High accuracy and Resolution. Low cost. Pressure unit selectable：MPa, kgf/cm², bar, psi.

Rated pressure range	0.000 ~ 1.000 kPa
Operating / Setting pressure range	－0.100 ~ 1.000 kPa
Medium	Air, Non-corrosive gases, incombustible gases
Proof pressure	1.5 MPa
Power supply voltage	12 to 24V DC ±10%, Ripple (P-P) 10%
Response time	Chattering-proof function: 0.05s, 0.25s, 0.5s, 1s ,2s and 3s selections
Switch output	NPN open collector, PNP open collector
Current consumption	≦40mA (With no load)
Output short circuit protection	Yes
Enclosure	IP40
Ambient temp. range	Operation: 0 ~ 50℃, storage:－10 ~ 60℃ ( No condensation or freezing)
Ambient humidity range	Operation/Storage: 35 ~ 85% RH ( No condensation)
Withstand voltage	1000V AC in 1-min. (between case and lead wire)
Vibration	Total amplitude 1.5mm or 10G,10Hz-150Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock	100m/s²(10G),3 times each in direction of X,Y and Z
Temperature characteristic	≦±2% F.S. of detected pressure (25℃) at temp. Range of 0~50℃
Lead wire	Oil-resistance cable(0.15mm²)
Weight	Approx 65 g (with 2-meter lead wire), Approx 30g (with male connector )

E MP41

Công tắc áp suất khí nén MP41 hãng Mindman
