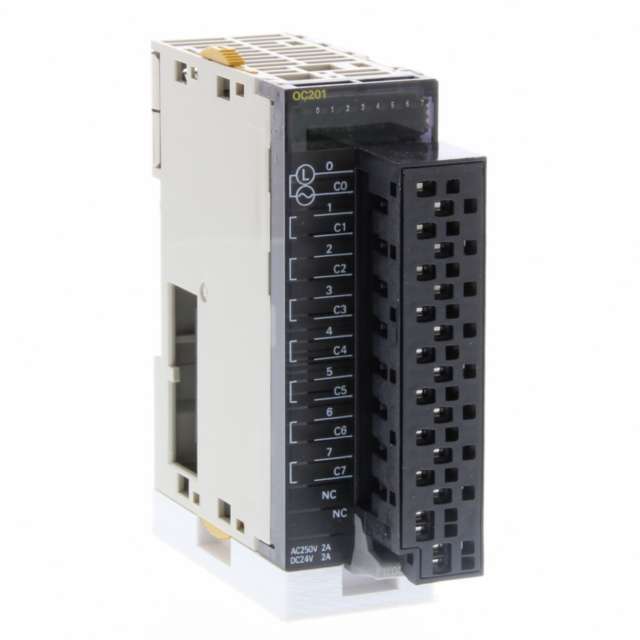

8 to 64 points per unit – input, output or mixed
Digital I/O units serve as the PLC’s interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt CJ1 to your needs.
CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin ‘flatcable’-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.
Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 8 |
| Digital output type | Relay NO |
| Permitted voltage at output | 5-250 V |
| Output current | 2 A |
| Short-circuit protected outputs | |
| I/O connection type | Screwless clamp |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 0 |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 85 mm |
| Product Weight (unpacked) | 88 g |
