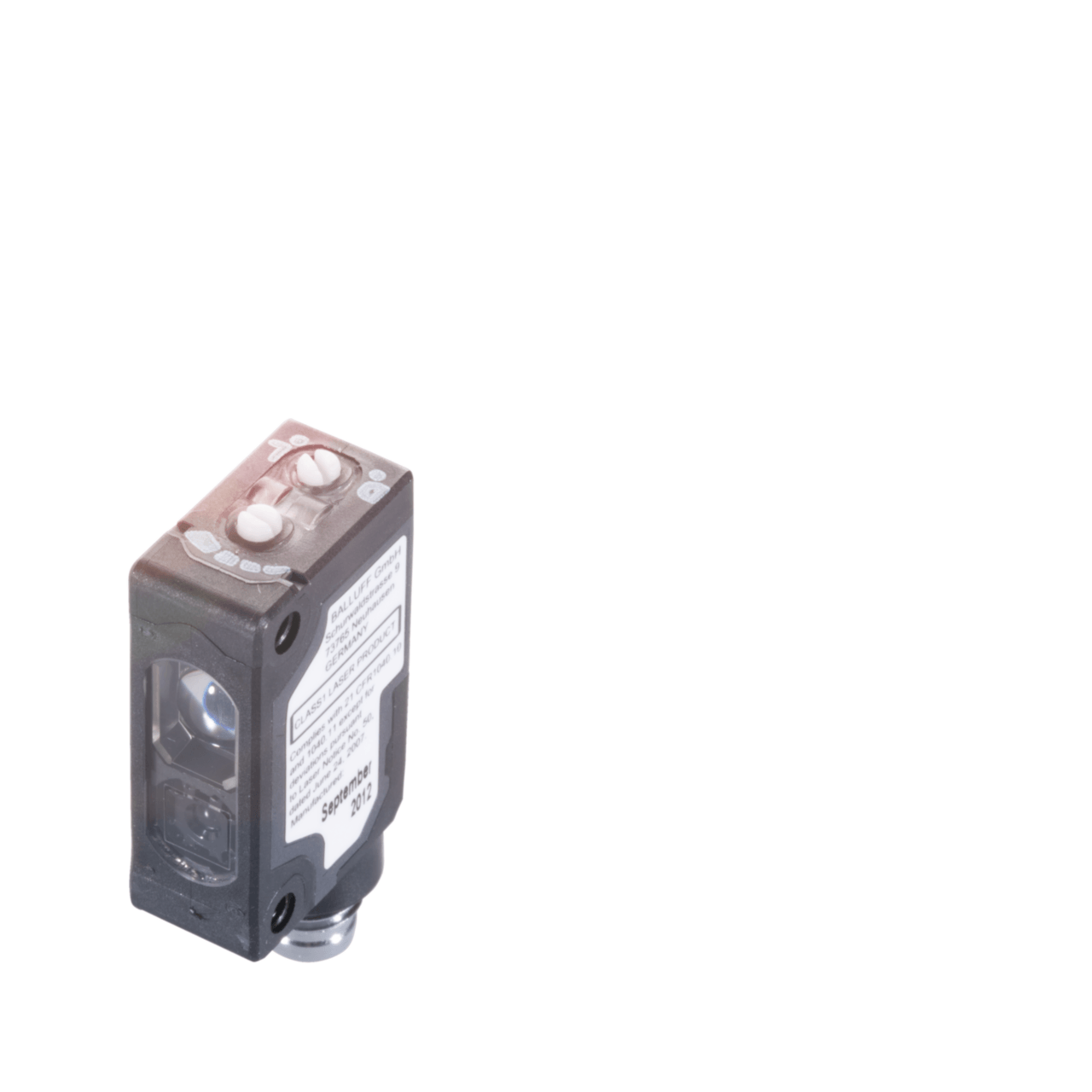

BOS 5K-PU-LH12-S75 Cảm biến quang

Liên hệ

Giao hàng COD toàn quốc

Order code: BOS01JK BOS 5K-PU-LH12-S75 Key features Series5K Dimension10.8 x 43.5 x 19.5 mm InterfacePNP normally open/normally closed (NO/NC) Principle of operationPhotoelectric sensor Principle of optical operationDiffuse sensor, triangulation Special optical featureBackgrou…

Mô Tả Sản Phẩm

Order code: BOS01JK

BOS 5K-PU-LH12-S75

Series5K

Dimension10.8 x 43.5 x 19.5 mm

InterfacePNP normally open/normally closed (NO/NC)

Principle of operationPhotoelectric sensor

Principle of optical operationDiffuse sensor, triangulation

Special optical featureBackground suppression

Beam characteristicFocus, typical at 260 mm

Light typeLaser red light

Light spot size0.2 x 0.3 mm at focal point

Range20…300 mm

ConnectionConnector, M8x1-Male, 4-pin

Housing materialPC
PBT

Material sensing surfacePMMA

Operating voltage Ub10…30 VDC

Approval/ConformityCE, cULus, CDRH, WEEE
